Loading Device by Robot FZ6.1

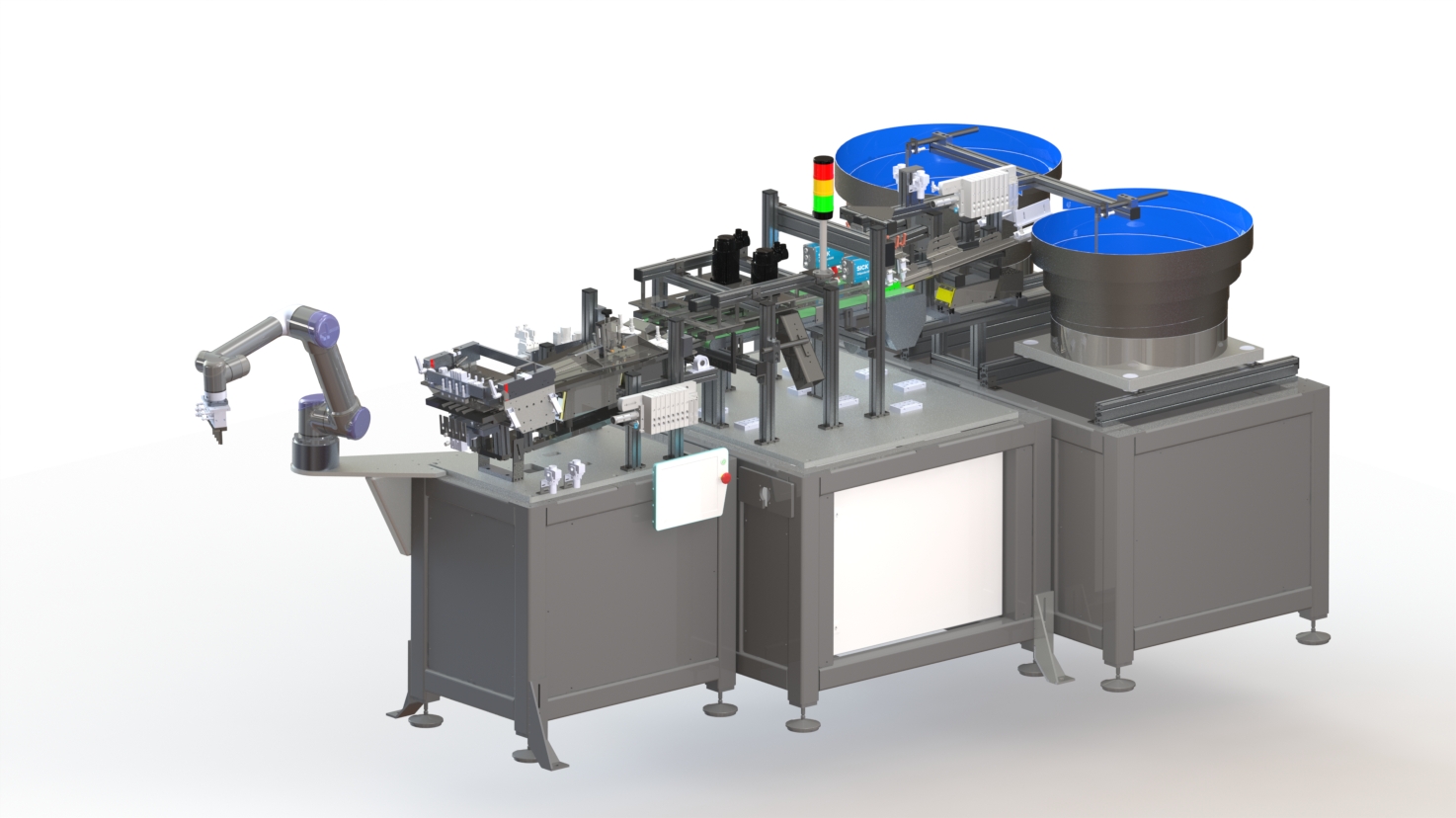

Loading device for in feed grinding with robot RB5

Rapid reaction and conversion times can be realized with the loading device model RB-5. This makes the automatic loading of grinding machines also interesting for small and medium sized quantities. The springs are separated by two integrated bowl feeders. The loading is done directly via a handling robot.

Easy and intuitive handling of the robot by direct "teaching" of the robot position. The handling robot can carry weights of max 5kg and has a working radius of 800mm.

Feeding of conical springs in correct positions is possible with camera sensor. The number of tracks is four by default. More tracks are possible.

The integrated bowlfeeders WFL 600 can feed springs with max. length of 150mm and diameters up to De 26mm.
