Loading Device by Robot RZ6.4

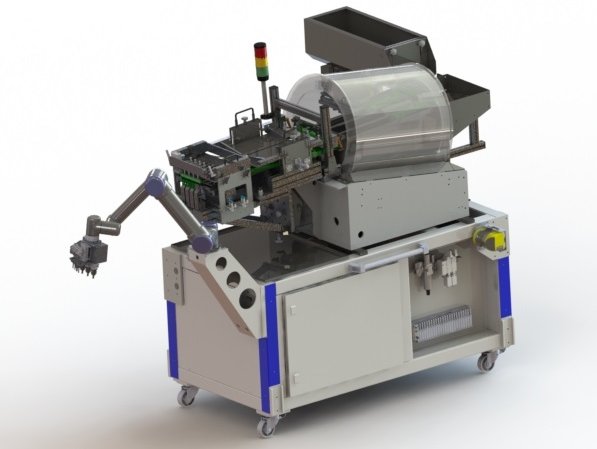

Loading device for in feed grinding with robot RB5

Rapid reaction and conversion times can be realized with the loading device model RZ. This makes the automatic loading of grinding machines also interesting for small and medium-sized quantities. The springs are separated by an integrated drum conveyor model TF with linear feeders. The loading is done directly via a handling robot.

Easy and intuitive handling of the robot by direct "teaching" of the robot position.

The handling robot can carry weights of max 5kg and has a working radius of 800mm.


wire diameter 1-6mm
spring outer diameter d 6-24mm
spring length l 10-60mm
l/d ratio >0,8
