Torsiontester TG-9


Available with specified torqe ranges:

Range: 0 - 5.000 Nmm Resolution: 0,1 Nmm
Range: 0 - 10.000 Nmm Resolution: 0,1 Nmm

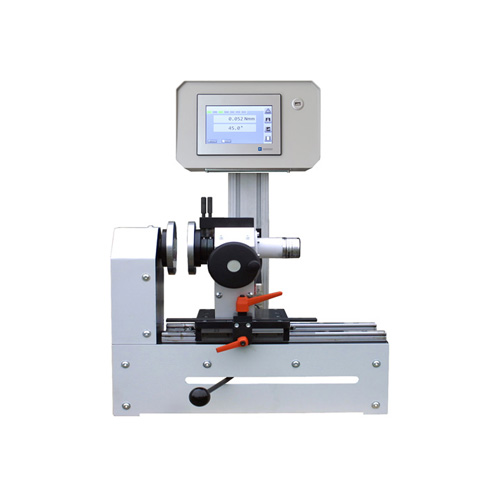

Torsiontester TG-9 for inspection of left and right coiled torsion springs. Torque and angle on touchscreen. The angle is on measured with 3600 steps per turn that makes a resolutoin of 0.1 degree. The tester has two stops for two testpositions for batch tests. The TFT Touchscreen unit has a RS 232 data output for the torque and / or angle to connect with a statistic computer or SPC system PC based.
