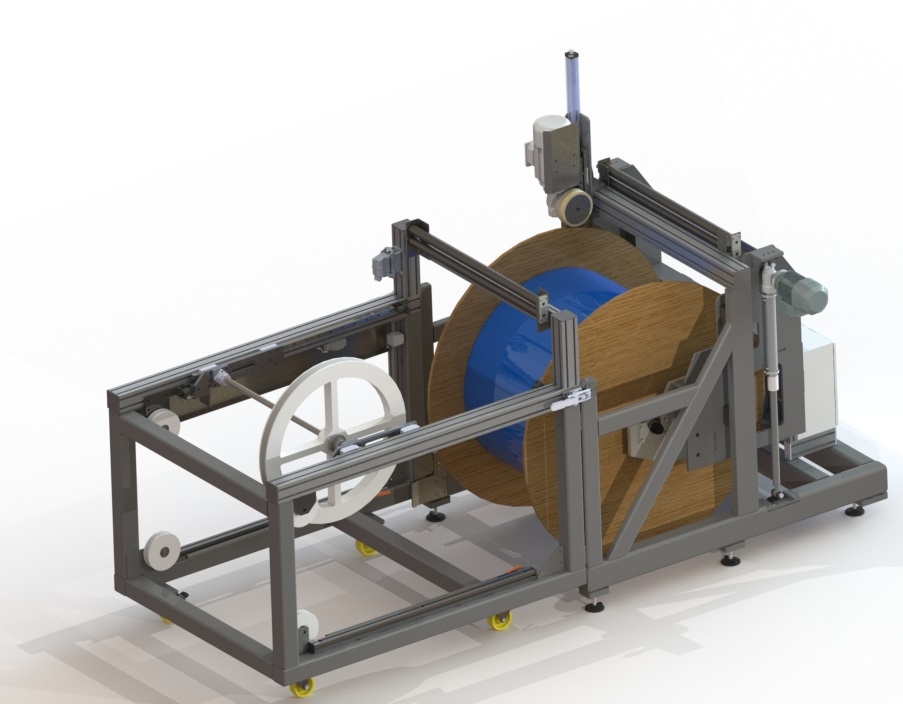

Drum swift SPH-1000.5 TR for wiredrums up to 1200kg
The swift is best usable in a production with a continuous wire feed to the machine. Because of the motor powered with wire tension control the swift guarantees low and to the wire diameter adaptable tensionforces. Beside this there are no additional radialforces on the wirefeed of the coiler. With these advantages you can reach a high accuracy in wirefeed which improves the quality especially on a critical production. Higher productionspeed of springs can be reached because of the high speed of the swift. The swift has safety barrier connectors and hand-operating device. The wire spool is driven up and down by an electrical lifting device. The wire guide (dance wheel) is particularly smooth for sensitive copper wires or narrow flat material.
Technical data:
| voltage: | 400 V |
| power consumption: | 1,5 kVA |
| wire diameter: | app. 3 - 10 mm |
| drum core hole: | 80 mm |
| max. drum width: | 700 mm |
| max. drum diameter: | 1200 mm |
| wire outlet height: | app. 1200-1400 mm |
| max. load of drum: | 1200 kg |
| max. speed: | 120 m/min |
